Stryten Energy BESS Products
3 BESS Technologies Available
Stryten Energy delivers trustworthy power for all ranges of energy storage needs. Whether it is one hour or several days, our BESS energy storage solutions can deploy the power you need. Our stored energy technologies include advanced lead, lithium and components for vanadium flow batteries (VFB). Stryten Energy's BESS are a dynamic solution for the next step in the transition to renewable energy capture and usage.

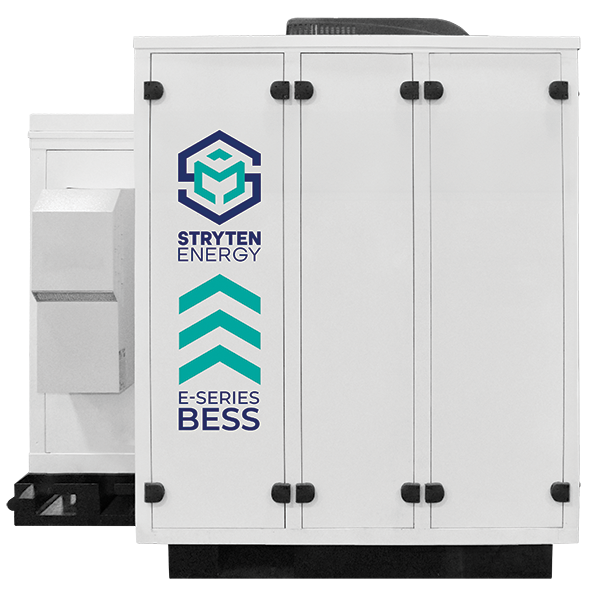

E-Series Lead BESS100
Stryten Energy’s Lead BESS offers a safe and reliable energy solution for your building, office or factory.
- Reduces utility costs by enabling peak shaving, integrating renewable energy sources for a local microgrid and providing dependable backup power.
- Utilizes safe, sustainable and domestically made advanced lead technology that balances performance, durability, safety and cost effectiveness.
- Is nonflammable and can be deployed in locations where lithium is not an option.
- Has a simple end-of-life solution due to the high recyclability and existing circular economy that supports domestic lead content.
- Domestically built and supported.
Resources

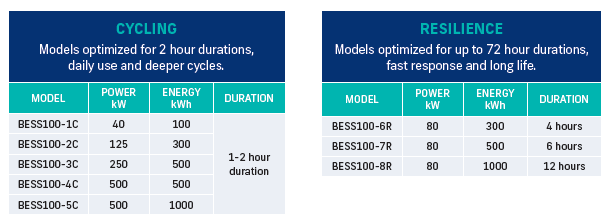

Advanced E-Series BESS100 is a turnkey solution designed to be modular and scalable for a wide variety of applications.
BEHIND-THE-METER APPLICATIONS
• Fast back-up power
• Commercial & Industrial (C&I)
• Offices, Warehouse & Factories
• Meet ESG Goals
• Community Centers
• EV Charging Stations
• Microgrids
• Renewable integration
Modular Energy Cabinets
Approx. 100kWh per cabinet (6 ft x 8 ft x 8 ft)
Inverter, control box and energy cabinets are modular, with the capability to connect in parallel for scalability.

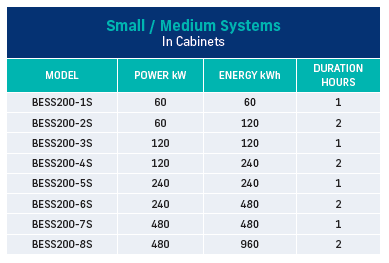

E-Series Lithium BESS200
Stryten Energy’s Lithium BESS offers a robust and reliable energy solution for your building, office or factory.
- Long-term, reliable source of power.
- Cycling configuration for peak shaving.
- Resiliency configuration for dependable back-up power.
- Utilizing cutting-edge Lithium technology, it delivers enhanced energy density and performance.
- Offered in cabinet and container options, providing versatility for all applications.
- Grid support tool that can mitigate fluctuations, stabilize voltage and enhance overall grid resilience.
Resources
Suggested Applications
- Fast Back-up Power
- Commercial & Industrial (C&I)
- Offices, Warehouse & Factories
- Meet ESG Goals
- Community Centers
- EV Charging Stations
- Microgrids
- Renewable integration

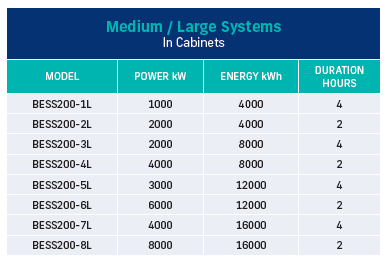

Large containerized system.
E-Series Vanadium BESS
Vanadium Components
Flow battery components are available today through our sister company Storion Energy.
Storion Energy offers domestically sourced price-competitive components for flow batteries, including vanadium electrolyte and flow battery stack power assemblies. Storion combines access to high-quality vanadium supply from the largest vanadium mine in the Western Hemisphere with domestic electrolyte production to establish a fully integrated vertical supply chain for utility-scale VRFBs used in long-duration energy storage (LDES) applications.
Vanadium electrolyte in storage containers.
Vanadium Batteries
Through partnerships with vanadium BESS suppliers, Stryten Energy offers custom, engineered-to-order Vanadium BESS.
Contact us to discuss a custom battery solution.
Rendering of upcoming vanadium BESS solution installed near Houston, Texas, with customer TerraFlow Energy.
Photo cred: Goree
BESS Modules & Components
Battle Born GC3 by Stryten
- Battery size that is patented and proprietary for maximum power in any space
- Designed for versatility with the ability to be wired in series or parallel and mounted in any orientation
- Safe and reliable lithium iron phosphate (LiFePO4) chemistry
- Rugged battery design built for RV, camper van, boat, trolling motor, industrial, off-grid, and residential backup applications
- Lightweight at just 81 pounds for 270Ah+ of usable power
- Long-lasting with 3,000-5,000 deep discharge cycles providing up to 10-15 years of power
- Internal BMS featuring low-temperature protection, high and low voltage, short circuits, and more
E-Series Absolyte Battery
E-Series Absolyte battery cells are a key component in Stryten Energy's Lead BESS. This battery is available as an individual module.
The Absolyte is a proven power solution for telecommunications, UPS, electric utility, railroad, and renewable energy applications. Designed and optimized for standby float, high rate, or deep cycling.
- Nominal Capacity Range: 105 – 4,800 amp-hours @ 77°F / 25°C
- Nominal Capacity Range: 241 – 3,089 watts per cell @ 77°F / 25°C
- Design Life: 20 years @ 77°F / 25°C
- Cycle Life: 1,200 cycles @ 80% Depth of Discharge
- Operating Temperature Range: -40°F / -40°C) to 122°F / 50°C)
- Patented lead-calcium-tin-silver positive-plate alloy reduces grid corrosion
- Fully recyclable
